PVC Flat Cables

PVC Flat Cables
PVC Flat Cables
Send Inquiry
Product Code : 02
Product Description

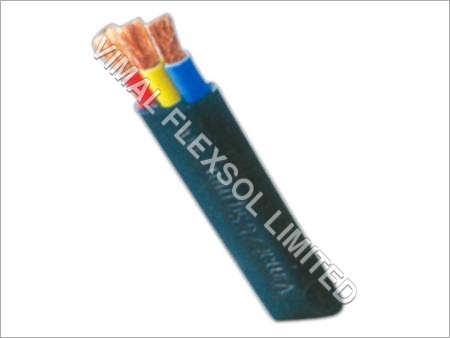

We strictly adhere to the guidelines laid by the international industry standards in order to provide high quality PVC Flat Cables. Provided cables are manufactured under the supervision of our experienced quality controllers using premium quality electrolytic grade bright copper. These cables are used for winding of submersible and are available in different specifications as per the specific requirements of clients. Further, our offered cables are highly appreciated for its excellent electrical & mechanical properties. Clients can be avail these PVC Flat Cables from us at pocket friendly price.

Features:

  • Flame resistance
  • Excellent malleability

  • Fine finish

  • The wires are drawn, annealed and bunched properly to ensure long life.
  • Each of these three flexible copper conductors is insulated with a specially formulated PVC compound and the cores are laid-up in Flat Parallel Position.
  • The outer sheath of the cable is made from a special grade of abrasion resistant PVC compound impervious to water, grease oil and flexible in nature.

    The PVC insulated copper conductor and PVC sheathed 3 Core Flat Cables are made similar to satisfy the requirements as per IS 694, Sequential meter marking is printed for users convenience to get correct length of cables.
  • Vimal brand name and size of cable is embossed on the sheath.

Specifications:

3 Core Flat Cables as per IS 694:1990 with ISI mark
Conductor
Insulation
Sheath
Overall Dimensions

Conductor
Resistance @20oC
(max)
ohms/km.
Current
Carrying
Capacity
@40oC
Amps
Area



sq. mm.
No./Dia.
of Strands


mm
Thickness
(Nom)


mm
Thickness
(Nom)


mm
Width x Height
(Approx)
W x H
mm
Nom.                                                         Max.
1.5
22/0.30*
0.60
0.90
11.0 x 5.0
11.5 x 5.4
12.10
14
2.5
36/0.30*
0.70
1.00
13.0 x 5.8
14.0 x 6.4
7.41
18
4.0
56/0.30**
0.80
1.00
15.6 x 6.8
16.5 x 7.2
4.95
26
6.0
84/0.30**
0.80
1.10
17.1 x 7.3
18.0 x 8.0
3.3
31

3 Core Flat Cables generally conforming to IS 694 : 1990
Conductor
Insulation
Sheath
Overall Dimensions


Area


Sq. mm.
No./Dia.
of Strands

mm
Thickness
(Nom)

mm
Thickness
(Nom)

mm
Width
(Approx)
'W'
mm
Width
(Approx)
'H'
mm
Conductor
Resistance
@20oC
(max)
ohms/km.
Current
Carrying
Capacity
@40oC
Amps
1.5
22/0.30
0.8
1.15
12.8
6.0
12.10
14
2.5
36/0.30
0.9
1.15
14.6
6.4
7.41
18
4.0
57/0.30
1.0
1.15
17.2
7.4
4.95
26
6.0
85/0.30
1.0
1.15
18.7
7.9
3.30
31
10.0
140/0.30
1.0
1.40
23.7
9.9
1.91
42
16.0
226/0.30
1.0
1.40
28.0
11.4
1.21
57
25.0
354/0.30
1.2
2.00
35.5
14.7
0.780
72
35.0
496/0.30
1.2
2.00
39.5
16.2
0.554
90
