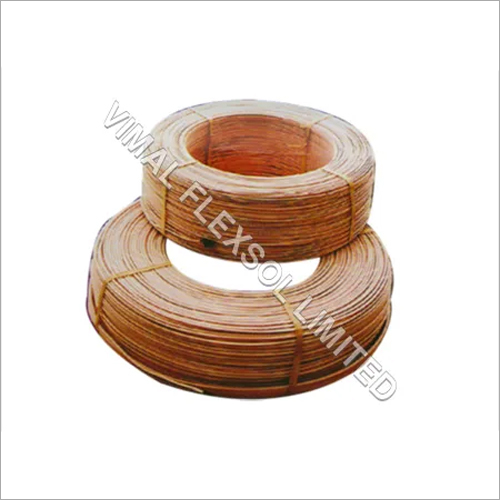

PVC Insulated Submersible Winding Wires

PVC Insulated Submersible Winding Wires
PVC Insulated Submersible Winding Wires
Send Inquiry
Product Code : 04
Product Description

We are an eminent name in the market as leading manufacturer, exporter and supplier of high quality range of PVC Insulated Submersible Winding Wires. The offered wires are manufactured using supreme polyvinyl chloride and other raw material with the help of latest manufacturing techniques, under the supervision of experienced professionals. These wires are provided with excellent pressure and pulling force and is mainly used for winding of submersible pump motors. The offered PVC Insulated Submersible Winding Wires are offered in various specifications to meet the precise needs of the clients at highly competitive prices.

Features:

  • Water proof

  • Resistant to harsh weather condition

  • Insulated with a very superior grade of HR PVC compound formulated and manufactured in house, to give to the necessary electrical strength and resistance to abrasion
  • Copper conductor of required purity and conductivity is dawn and in line annealed in world-class wire drawing machine
  • Automatic on-line controls in our extrusion process consistently give high quality

Table 1 :- HR PVC Insulated winding wires as per IS : 8783 (Part 4/ sec1) : 1995 (Soild Copper Conductor)
Nom.
Conductor
Diameter
(mm.)
Nom.
Cross-Sectional
Area
(sq. mm.)
Min. Insulation
Thickness
(mm.)
Approx Overall
Diameter
(mm.)
Max. Conductor
Resistance
at 200C
(Ohms / Km)
0.80
0.502
0.30
1.47
3.500
0.90
0.638
0.30
1.57
2760
1.00
0.785
0.30
1.67
2.240
1.10
0.850
0.30
1.77
1.850
1.20
1.13
0.30
1.87
1.550
1.30
1.33
0.30
1.97
1.320
1.40
1.54
0.35
2.17
1.140
1.50
1.77
0.35 2.27
9.95
1.60
2.01
0.35 2.37
8.75
1.70
2.27
0.35 2.47
7.75
1.80
2.54
0.35 2.62
6.91
1.90
2.84
0.35 2.72
6.20
2.00
3.14
0.45
3.02
5.60
2.10
3.46
0.45 3.12
5.08
2.20
3.80
0.45 3.22
4.63
2.30
4.15
0.45 3.32
4.23
2.40
4.52
0.50
3.52
3.89
2.50
4.91
0.50
3.62
3.58
2.60
5.31
0.50
3.72
3.31
2.70
5.73
0.50
3.82
3.07
2.80
6.19
0.55
4.02
2.86
3.00
7.07
0.55
422
249


Physical Properties

The Limiting Values of solid copper conductor diameter, Elongation at Break and other technical details are as given in IS 8783 (Part 1): 1995

The Properties of PVC compound are as given in IS 8783 (Part 2): 1995.

The Winding Wires are tested as per IS 8783 (Part 3):1995

Instruction for Use
  • As this product is being delicate & it's application being critical, A due care should be taken in handling of winding wire from manufacturing of coils to packing of pump.
  • These wire are strictly passes through 'High voltage test' with latest computerised equipment in Vimal factory to avoid any critical problem while using. So customer does not required to carry out any test (except Meager Test) in all respects.
  • Do not stack more that 4 coils otherwise, bottom coil is likely to get damaged due to upper coil weight.
  • Always keep away winding wire from those things having sharp edges to avoid unintentional damage. Also avoid welding spark falling on winding wire while welding.
  • It is sure that if a care has been taken during the use of winding wire, store time & inserting into stator slot it will be definately ensure your Submersible pump's performance & Trouble free shooting for long long time.
  • To ensure proper jointing with three core flat cable with motor to avoided failure.
